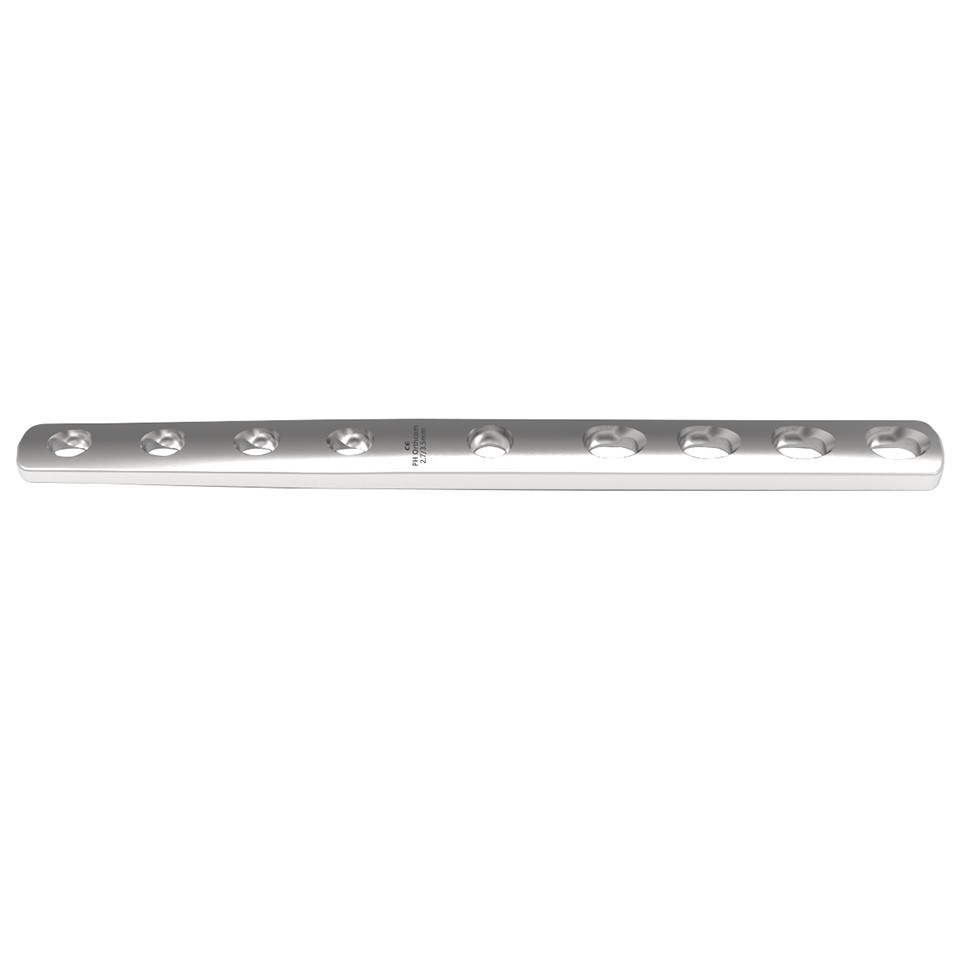

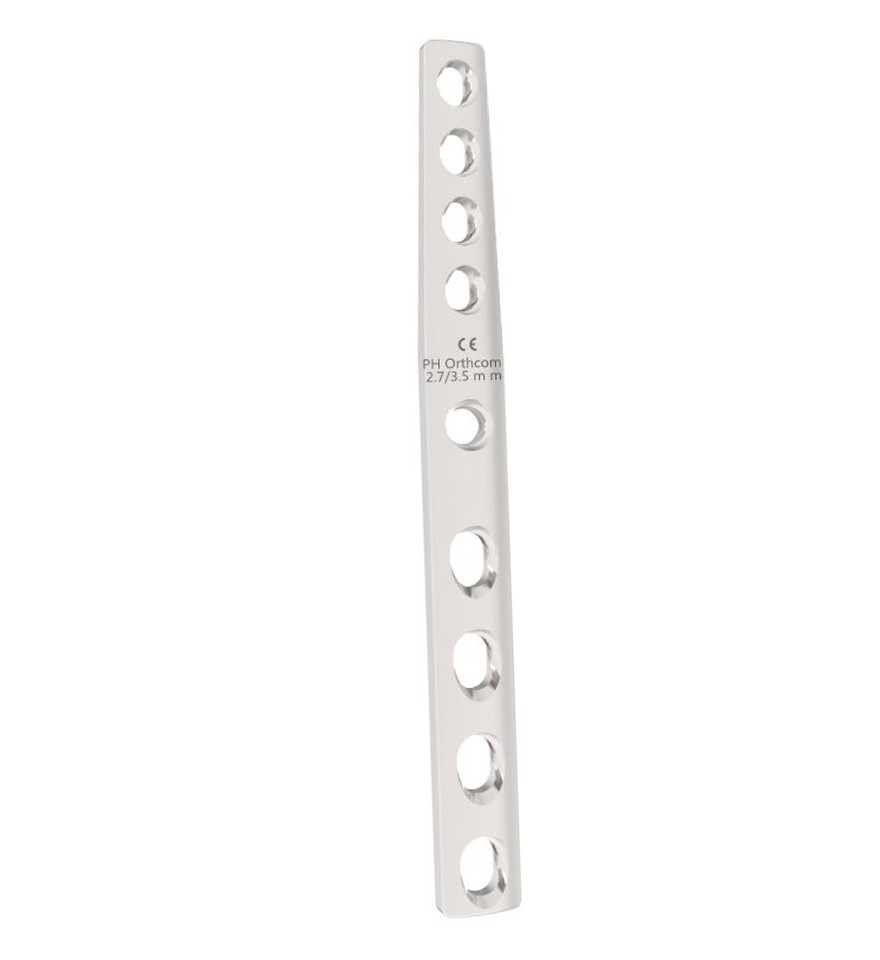

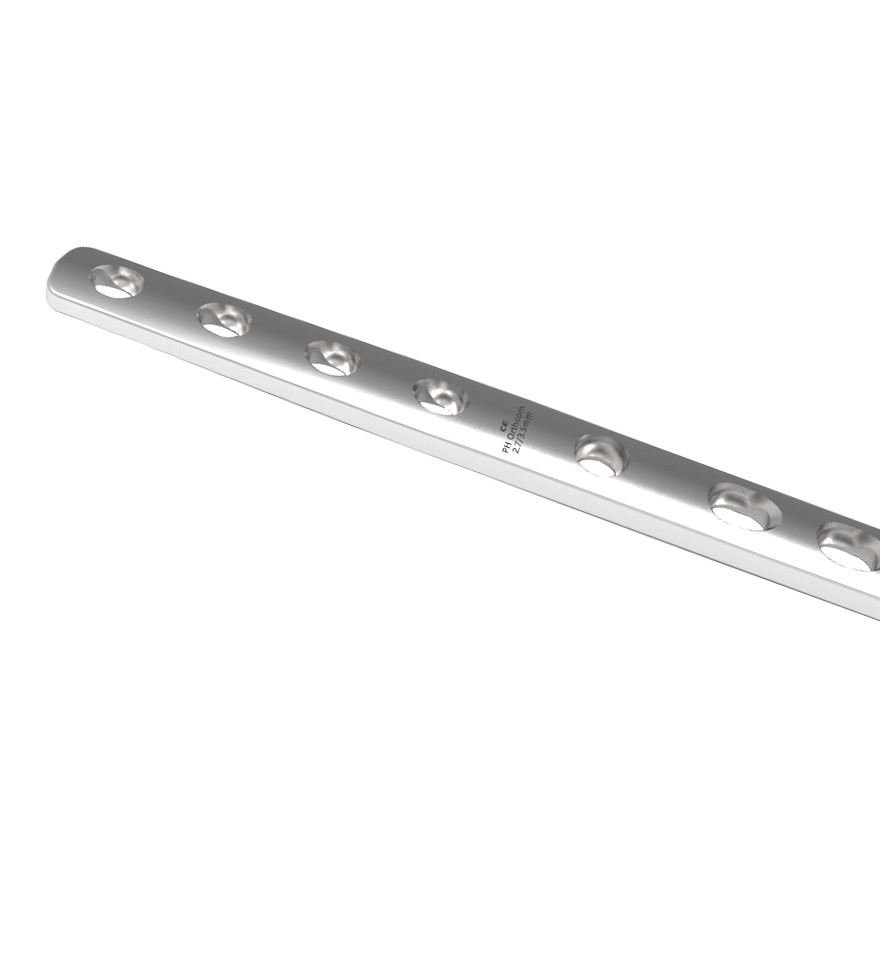

Veterinary Locking Plates
Shanghai Huifeng Medical Instrument Co., Ltd. is one of the most professional manufacturers and suppliers of veterinary locking plates in China. Please feel free to buy customized veterinary locking plates made in China here from our factory. If you have any enquiry about quotation, please feel free to email us.
Main Parameters
|
Product name |
Model |
Number of holes |
Length(mm) |
Width(mm) |
Thickness(mm) |
|

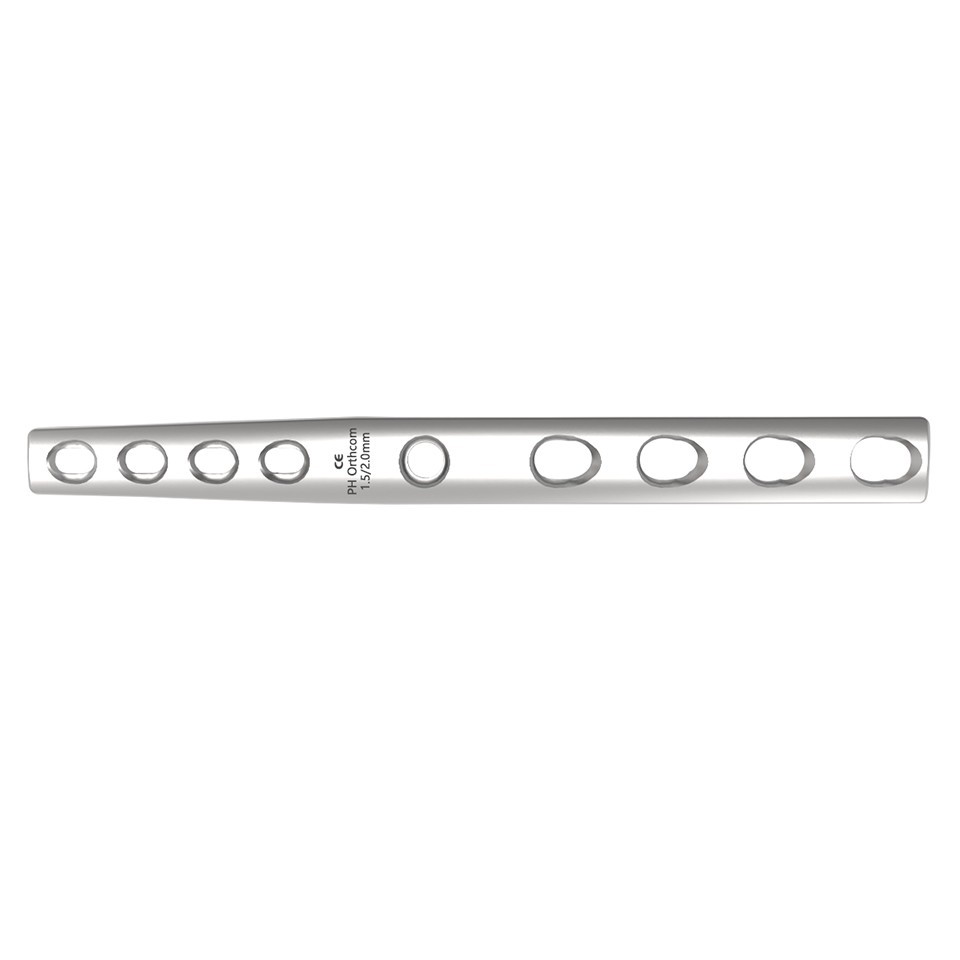

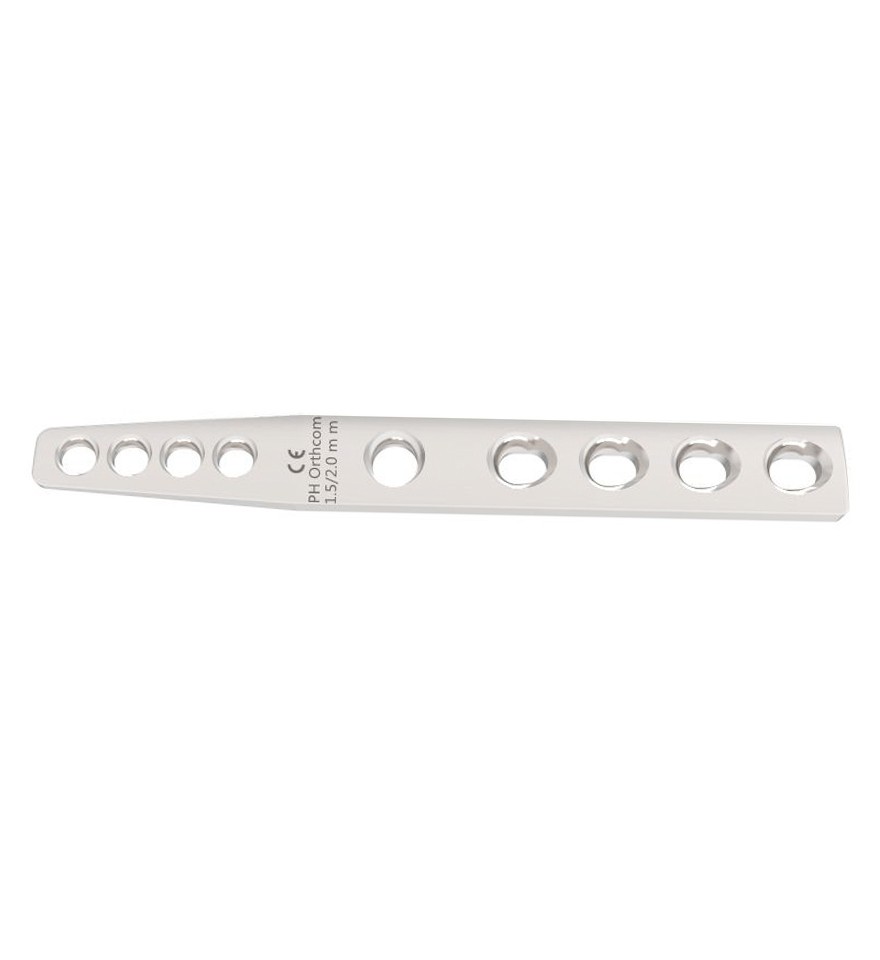

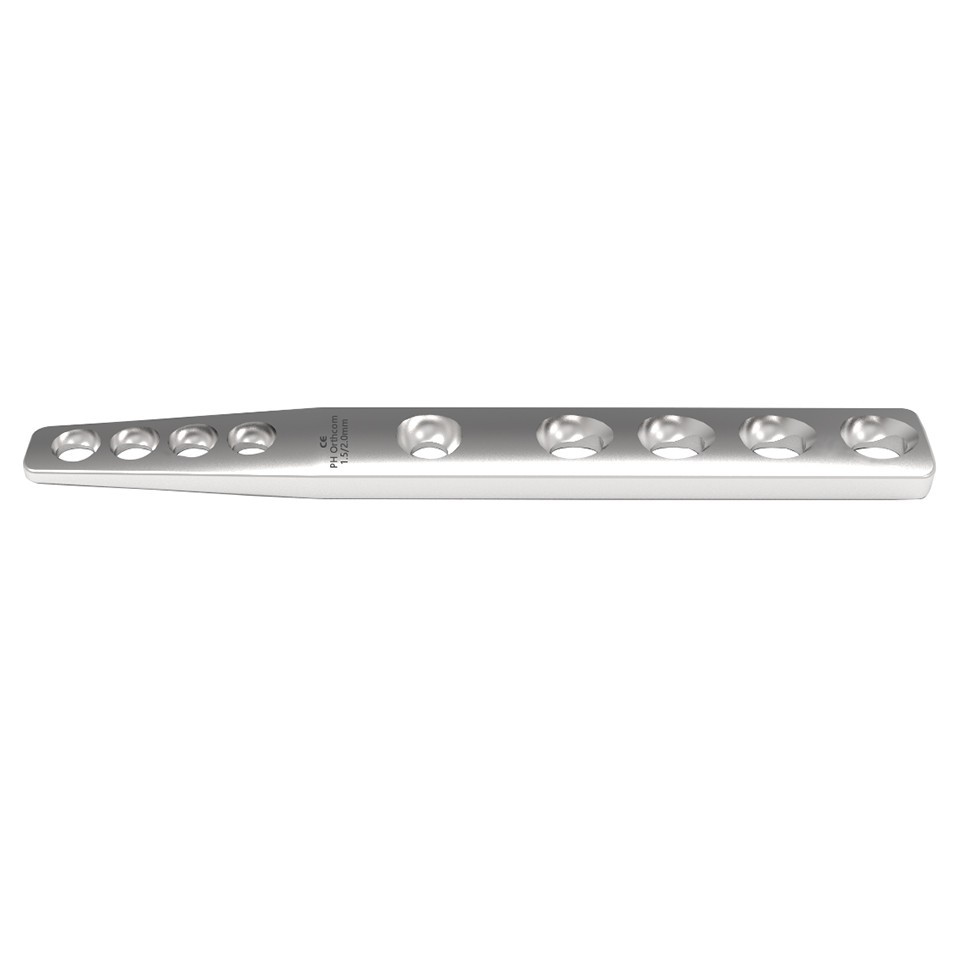

1.5/2.0 mm wrist fusion plate |
HF-007-15200 |
4+1+4 |
53.5 |
4.1/6.3 |
1.0/2.0 |
|

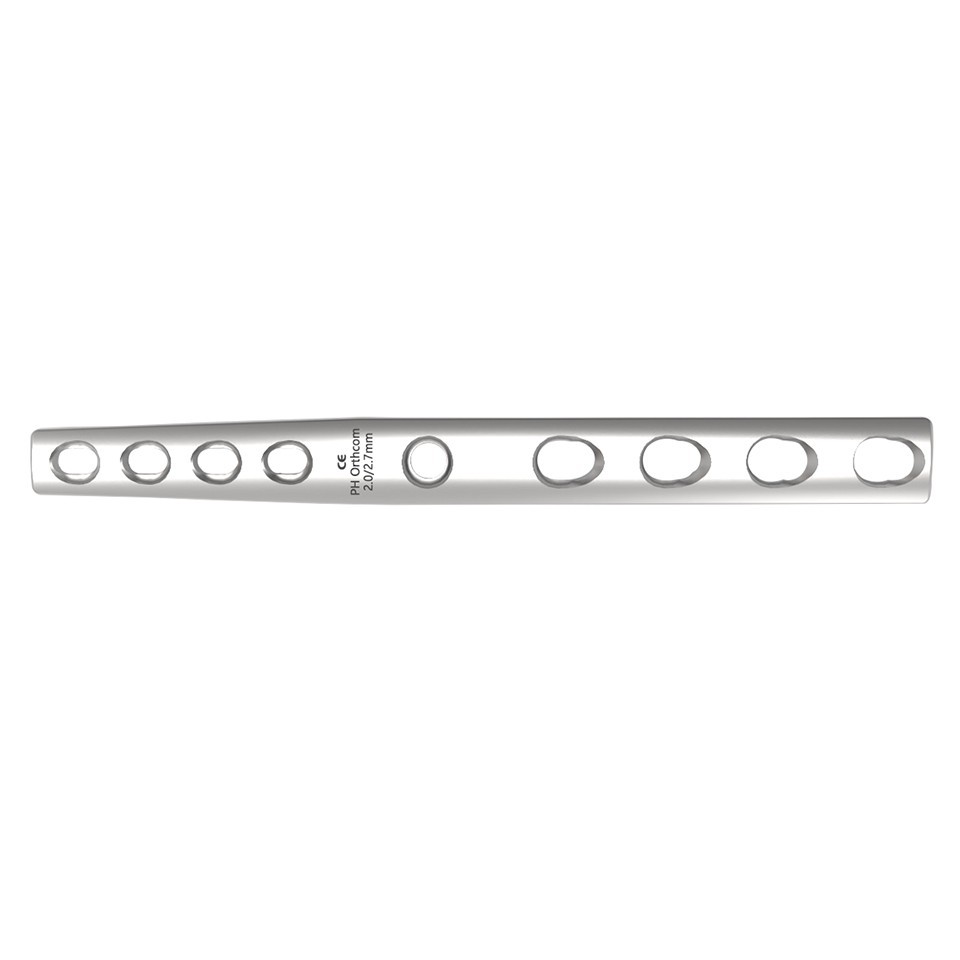

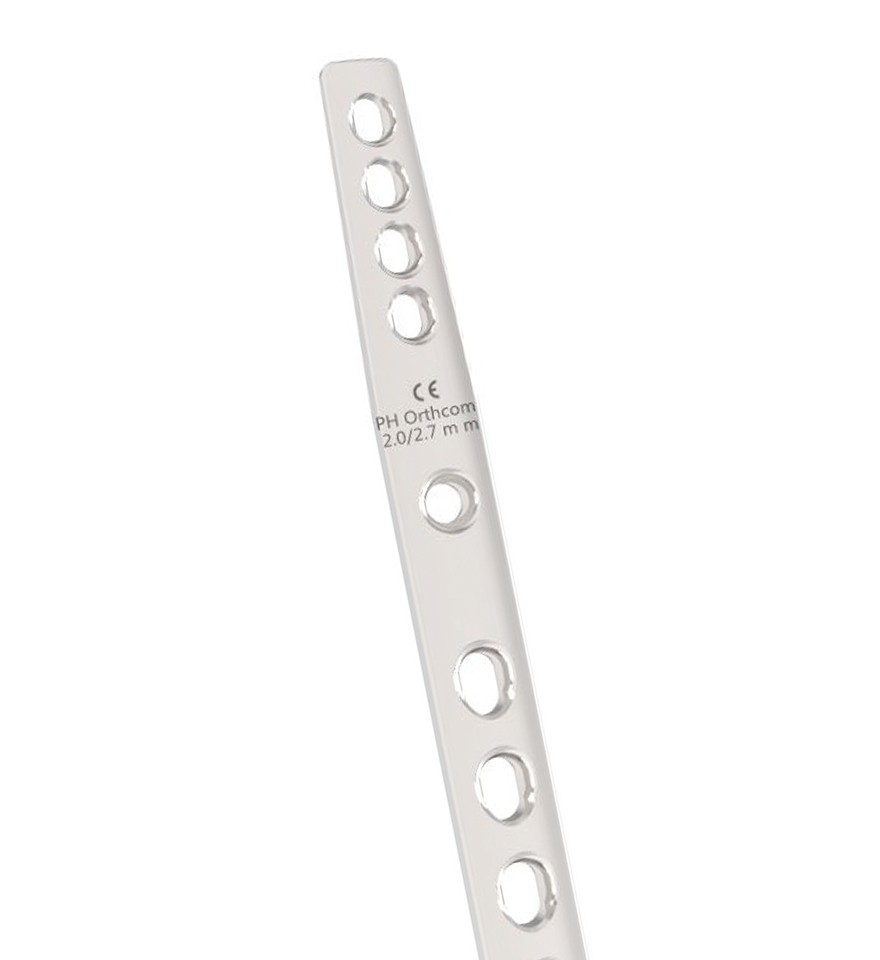

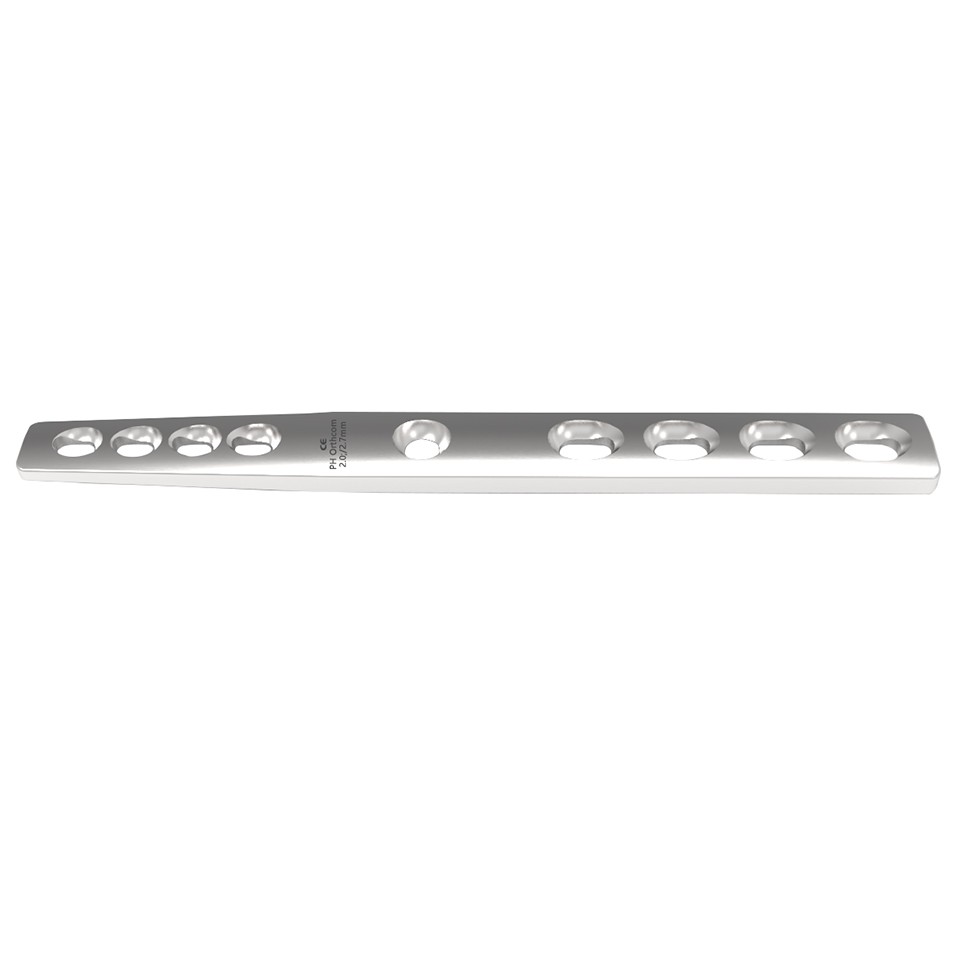

2.0/2.7 mm wrist fusion plate |
HF-007-20270 |
4+1+4 |
76.5 |
6.0/8.0 |
1.4/2.0 |
|

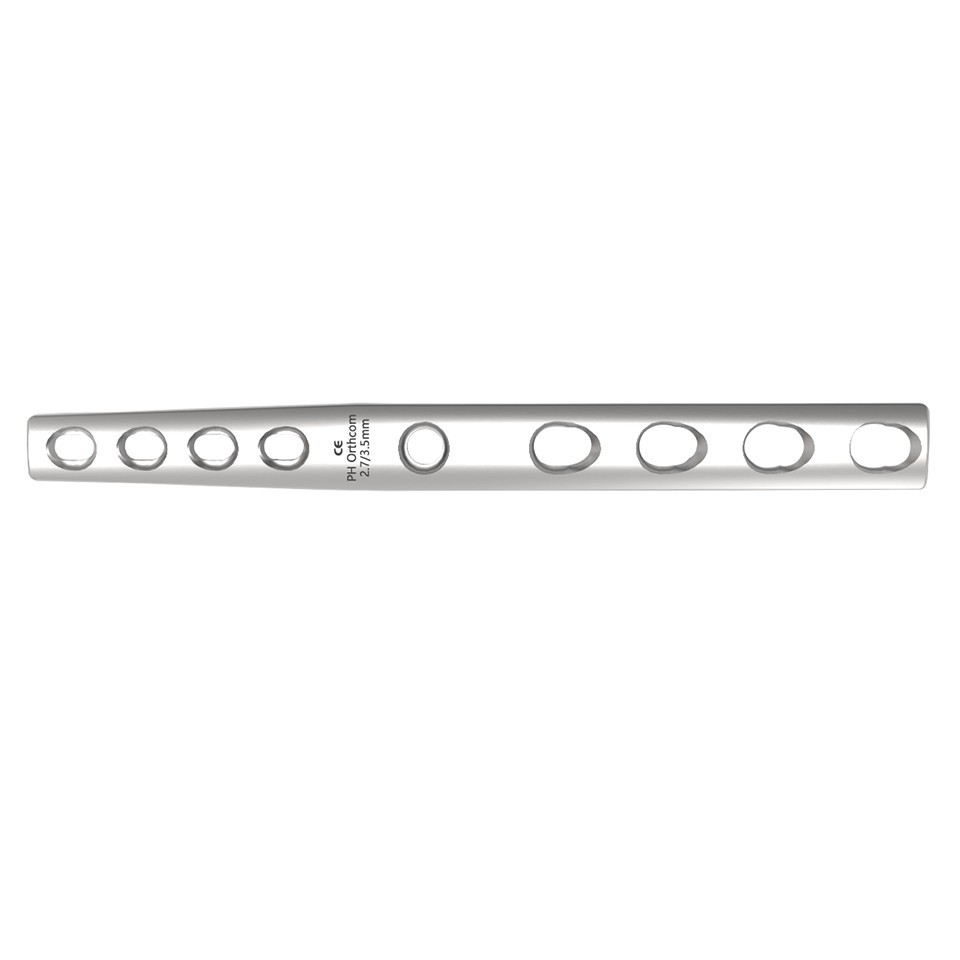

2.7/3.5 mm wrist fusion plate |
HF-007-27350 |
4+1+4 |
102.0 |
7.5/10.0 |
2.5/3.2 |
|
HF-007-27351 |
4+1+4 |
118.0 |
8.6/10.0 |
2.5/3.2 |
|
|
1.5/2.0 mm wrist fusion plate(Pre-bend 5 degrees) |
HF-008-15200 |
4+1+4 |
53.5 |
4.1/6.3 |
1.0/2.0 |
|
2.0/2.7 mm wrist fusion plate(Pre-bend 5 degrees) |
HF-008-20270 |
4+1+4 |
76.5 |
6.0/8.0 |
1.4/2.0 |
|
2.7/3.5 mm wrist fusion plate(Pre-bend 5 degrees) |
HF-008-27350 |
4+1+4 |
102.0 |
8.6/10.0 |
2.5/3.2 |
Precise Fixation
Veterinary locking plates' optimized screw hole spacing and size combination ensures a secure fusion of the radius, radial carpal bone, and metacarpal bones (such as the third metacarpal bone), aiding in rapid postoperative recovery and improving surgical success rates.
Features
● Multiple specifications are available, with bone plates of different sizes provided to accommodate the anatomical differences in the wrist joints of small dogs, large dogs, and cats
● Low profile design and optimized bone plate thickness reduce soft tissue irritation and foreign body sensation after surgery
● Compatible with multiple screw specifications, providing 1.5mm-3.5mm screw options to meet the fixation needs of the radius, radial carpal and third metacarpal
● Dynamic compression design, some screw holes allow micro-motion, promote bone healing, and avoid stress shielding effect
● Surface treatment technology enhances the friction between the plate and the bone and improves initial stability
● Strong intraoperative adjustability to adapt to different anatomical variations
● Image compatibility: Reduce artifacts and facilitate postoperative imaging assessment of healing
FAQ
Q: Where is the company address?
A: Shanghai Huifeng medical instrument co., Ltd, located in Shanghai which is known as the "Oriental Paris".
Q: When was the company founded?
A: We always pursue innovation and is steady development from building factory in1992 till now.
Q: What are the company's main products?
A: Our main products is veterinary surgical lights, veterinary table and pet grooming table etc.
Q: What is the company's philosophy?
A: The company keeps to the concept of being oriented by science and technology and taking quality as life.
Q: Can you provide OEM service?
A: Yes, we can provide OEM service.
