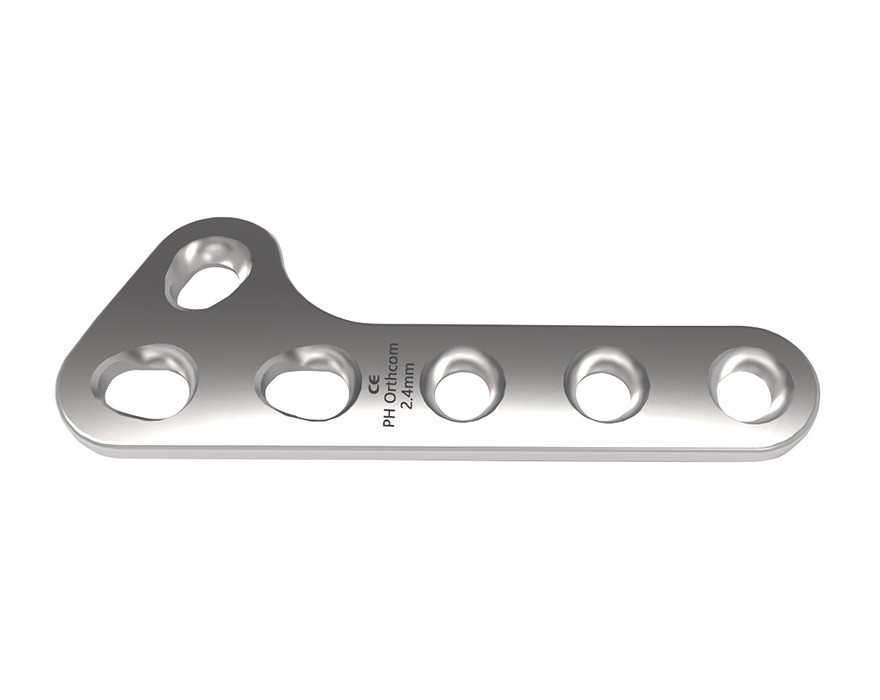

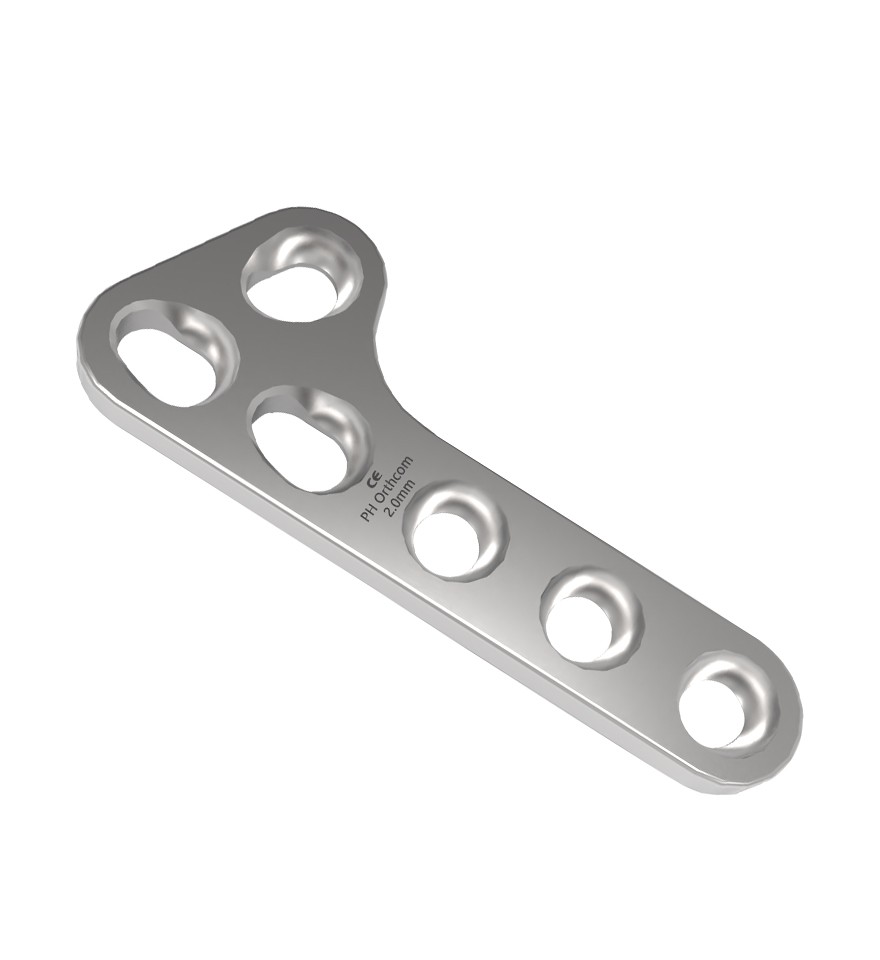

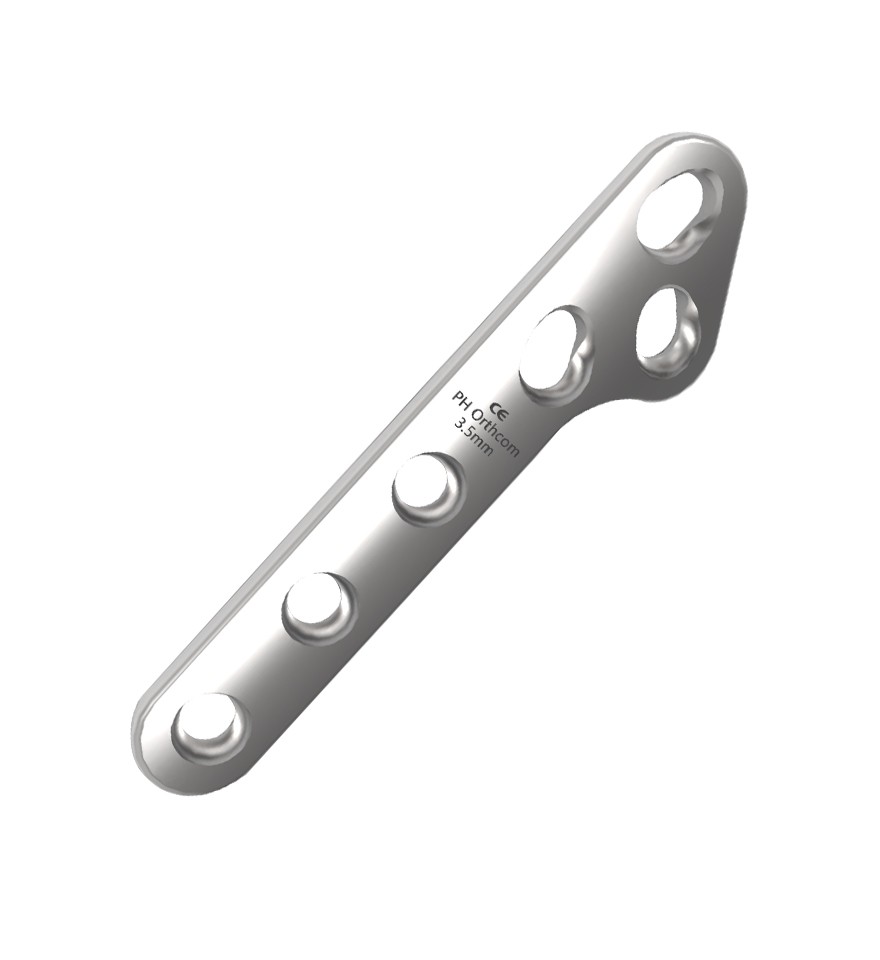

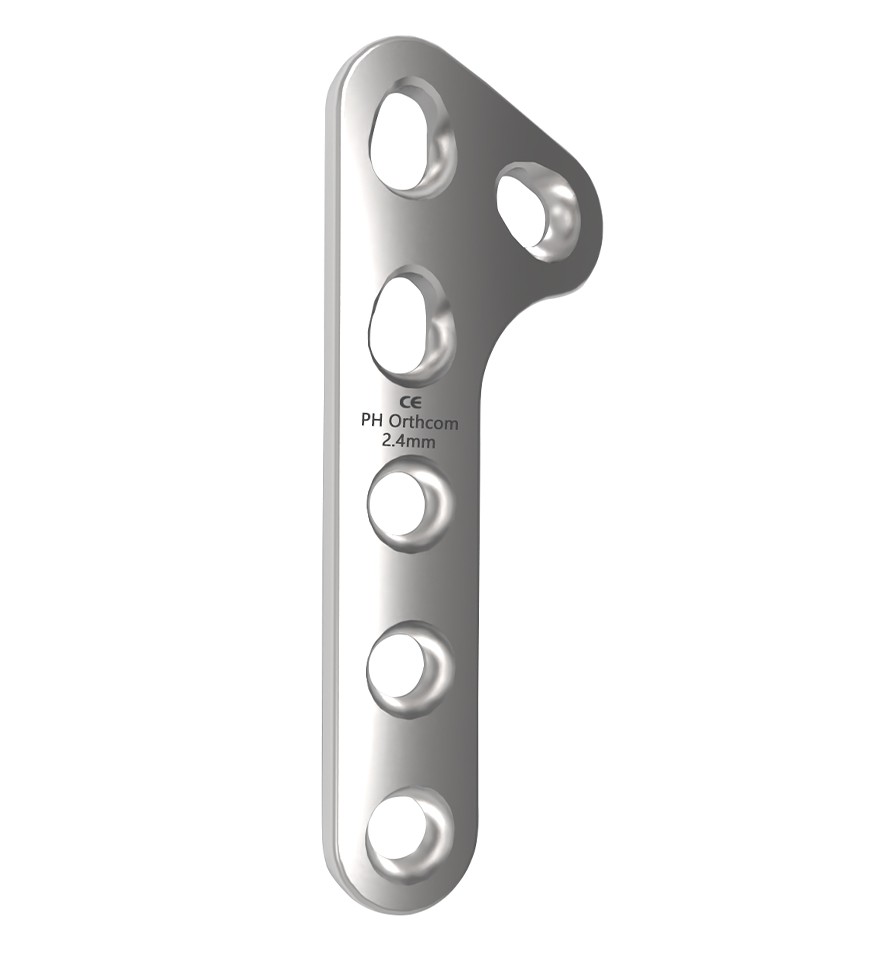

TPLO Locking Bone Plate
Shanghai Huifeng Medical Instrument Co., Ltd. is one of the most professional manufacturers and suppliers of tplo locking bone plate in China. Please feel free to buy customized tplo locking bone plate made in China here from our factory. If you have any enquiry about quotation, please feel free to email us.
Main Parameters
|
Product name |
Model |
Number of holes |
Length(mm) |
Width(mm) |
Thickness(mm) |
direction |
||
|
head |
Shaft |
head |
Shaft |
|||||
|
2.0mm TPLO Slocum Plate |
HF-011-2033L |
3 |
3 |
26.0 |
10.3 |
5.2 |
1.5 |
Left |
|
HF-011-2033R |
3 |
3 |
26.0 |
10.3 |
5.2 |
1.5 |
Right | |
|
2.4mm TPLO Slocum Plate |
HF-011-2433L |
3 |
3 |
35.3 |
13.5 |
6.6 |
1.5 |
Left |
|
HF-011-2433R |
3 |
3 |
35.3 |
13.5 |
6.6 |
1.5 |
Right | |
|
2.7mm TPLO Slocum Plate |
HF-011-2733L |
3 |
3 |
40.3 |
16.3 |
8.2 |
2.0 |
Left |
|
HF-011-2733R |
3 |
3 |
40.3 |
16.3 |
8.2 |
2.0 |
Right | |
|
3.5mm TPLO Slocum Plate |
HF-011-3533L |
3 |
3 |
64.0 |
17.0 |
10.2 |
2.5 |
Left |
|
HF-011-3533R |
3 |
3 |
64.0 |
17.0 |
10.2 |
2.5 |
Right | |
Stable Support
TPLO locking bone plate uses Slocum patented technology combined with a high-fit bone plate design to ensure long-lasting surgical results. The medical stainless steel material combines hardness and plasticity, and the low profile notch reduces soft tissue irritation.
Features

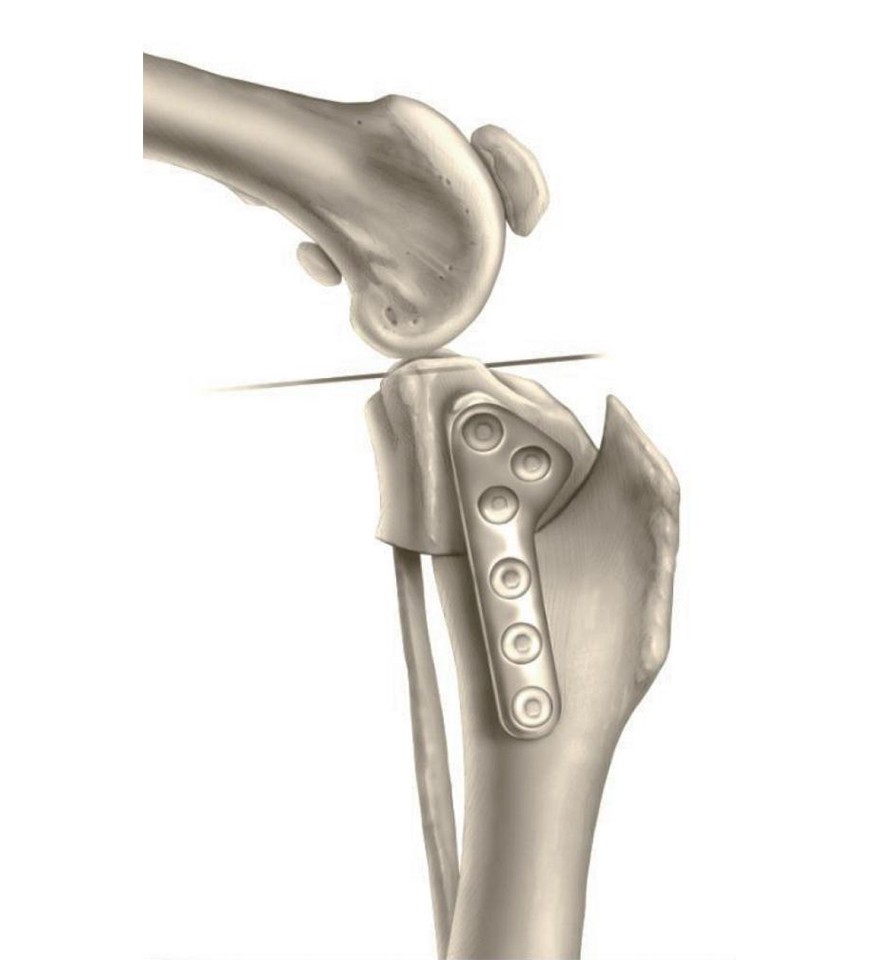

● Calculate the tibial plateau inclination angle based on X-rays and determine the osteotomy rotation angle in a personalized way
● Reshape the mechanical structure of the knee joint, delay the progression of arthritis, and restore long-term motor function
● Excellent hardness and moderate plasticity make it easy to fine-tune during surgery and ensure stable fixation
● Suitable for small to large dogs to meet the needs of different sizes
● Quick suture compatible, smooth edges to avoid suture wear and simplify wound closure
● Allows compression fixation of cortical screws, promoting the speed of bone healing
● Strictly follow the original TPLO technical standards to ensure surgical reliability
FAQ
Q: Where is the company address?
A: Shanghai Huifeng medical instrument co., Ltd, located in Shanghai which is known as the "Oriental Paris".
Q: When was the company founded?
A: We always pursue innovation and is steady development from building factory in1992 till now.
Q: What are the company's main products?
A: Our main products is veterinary surgical lights, veterinary table and pet grooming table etc.
Q: What is the company's philosophy?
A: The company keeps to the concept of being oriented by science and technology and taking quality as life.
Q: Can you provide OEM service?
A: Yes, we can provide OEM service.
Hot Tags: tplo locking bone plate, China tplo locking bone plate manufacturers, suppliers, factory, Veterinary Locking Plates
